DBaaS On OCI Fails To Launch With DNS Error "VCN RESOLVER FOR DNS AND DNS LABEL" - OCI

-

Database Creation Issue on DBaaS Service in OCI

Issue :

Invalid Parameter - VCN RESOLVER FOR DNS AND DNS LABEL must be enabled for all subnets used to launch the specified shape.

This issue was caused by a configuration of the custom DNS resolver option in Oracle Cloud Infrastructure virtual cloud network (VCN) settings. This post explains the issue and how to resolve it.

When customers configure a subnet within a VCN, they can choose Internet and VCN Resolver or Custom Resolver when configuring the DHCP options.


The default is Internet and VCN Resolver. If customers want to use their on-premises DNS servers across the FastConnect or IPSec VPN, they can select Custom Resolver. Generally, most enterprise customers put a DNS relay in the VCN within a shared services subnet. Typically the subnets within the VCN reflect this configuration. This works great for the applications.
However, the issue starts when customers try to provision an Oracle Database Cloud Service (DBCS) instance by using a prebuilt Oracle Database image on a subnet that is using the Custom Resolver DHCP option.
The typical error message is as follows:
Invalid Parameter - VCN RESOLVER FOR DNS AND DNS LABEL must be enabled for all subnets used to launch the specified shape

This message goes away when the customer changes the DNS in the DHCP options to Internet and VCN Resolver. But this change breaks other applications. This issue happens because of the recursive nature of the native VCN resolver.
Solutions

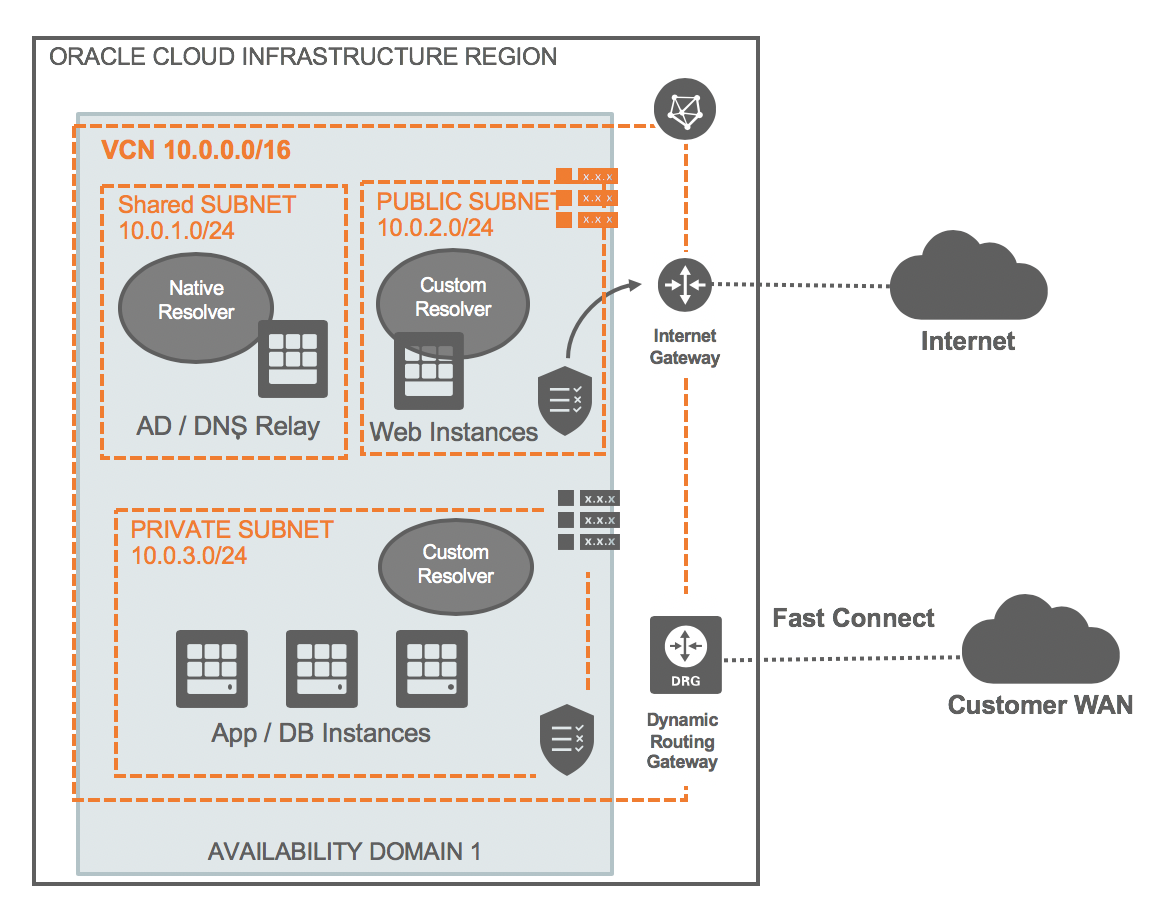

We have found a workaround for this problem when the customer is using prebuilt DB images for a DBCS. The following diagram describes the architecture:
To implement this workaround, perform the following steps:
  1. Use Terraform to create the VCN and required subnets. For instructions, see the VCN Overview and Deployment white paper.
  2. Select the VCN in which the Database instance is required to be launched.
  3. Select the Internet and VCN Resolver DHCP option (which is the default option).
  4. Launch the Database instance and make the required configuration for the instance.
  5. After the Database instance is launched, go to the DHCP options, select Custom Resolver, and enter the customer’s DNS server IP address.
  6. Instantiate the DNS relay serve in the shared resources subnet (referred in the preceding diagram as the shared subnet). Keep the DHCP option as Internet and VCN Resolver (the default).
  7. In all other application subnets, select the Custom Resolver DHCP option and enter the customer’s DNS server IP address.

Note: Ensure that there is connectivity back to the customer DNS server or servers from the Oracle Cloud. Also ensure that you populate the DNS Label field when creating the VCN, or it will take the default value.
That means you must ensure to revert back the changes to DHCP once you launched DB instance.
Issue Resolved . Happy Learning.
